Oil Pressure and Temperature Dash Gauge - Alex

This gauge allows you to monitor and set alarms for both the oil pressure and fluid (Oil or Coolant) temperature during all driving conditions.  The gauge uses digital technology and has a full colour screen to display pressure, temperature, settings and alarms.

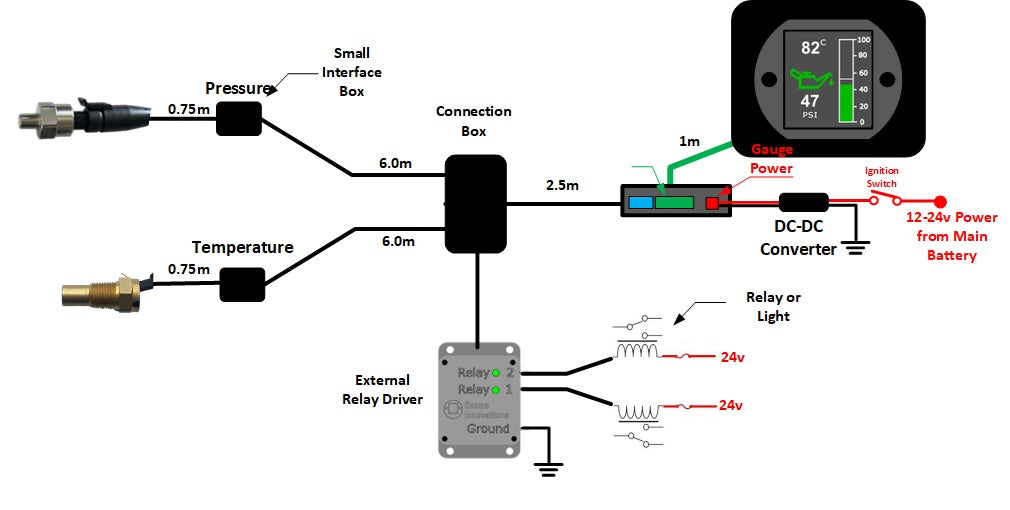

The Oil Pressure and temperature gauge is supplied with the following following sensors

• Gauge Innovations oil pressure sensor 1/8 NPT screw in Model VOPS-01 (6 meter cable)
• Gauge Innovations 1/8 NPT screw in temperature sensor (6 meter cable)

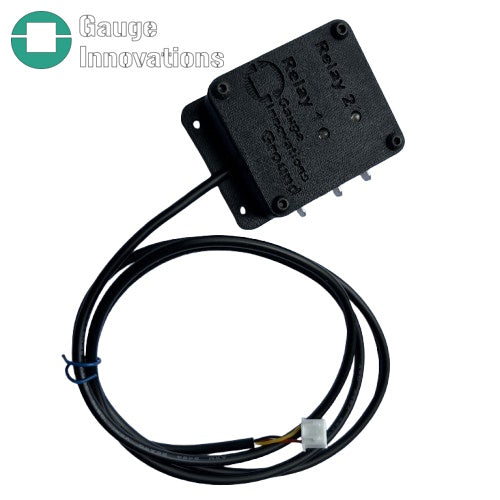

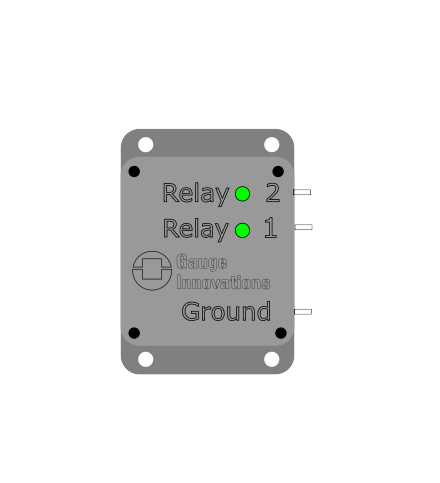

• External Relay Driver.

VOPA-01 Oil Pressure gauge documentation

• VOPD-01 Oil Pressure Gauge Manual
• VOPD-01 Gauge Installation Notes
• VOPD-01  Operations Summary
• VRDS-01_External_Relay_Driver Manual Ver 01
