Boost pressure, EGT temperature gauge

Boost pressure is important for monitoring the pressure in a vehicle turbocharger, to ensure the engine is running efficiently and to warn of possible damage. A boost gauge:

• helps ensure the correct ratio of air to fuel, which is important for engine performance.
• helps warn drivers of excessive pressure ranges that can cause engine damage or warn of possible damage to the turbo..

In addition to monitoring boost pressure, one of the most effective ways of monitoring overall engine performance is to display the exhaust gas temperature (EGT).  The EGT is also useful for tuning the fuel trim on petrol or diesel engines. However, most vehicles do not display the EGT at all.

Boost Pressure and EGT temperature gauge kit includes:

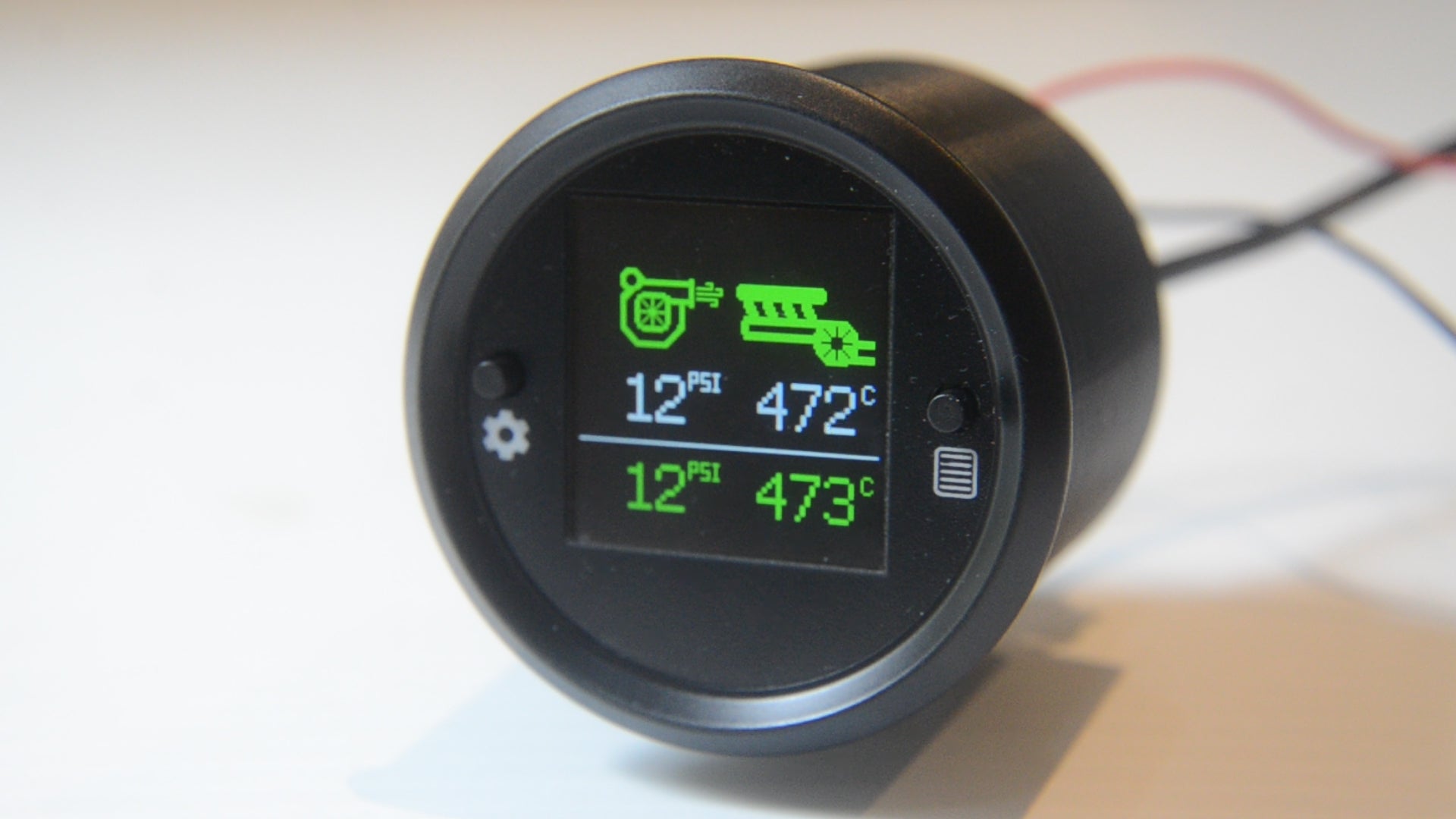

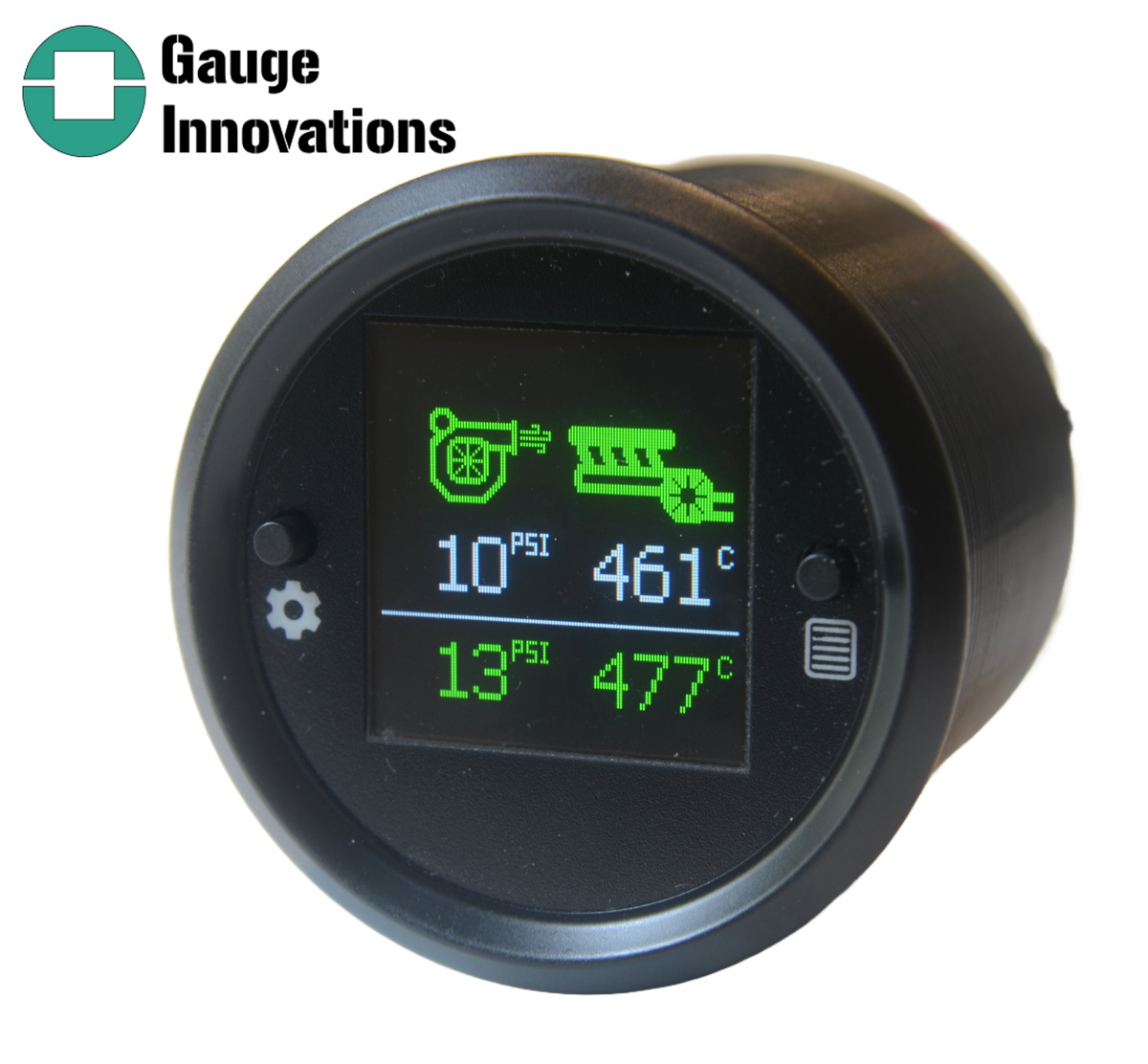

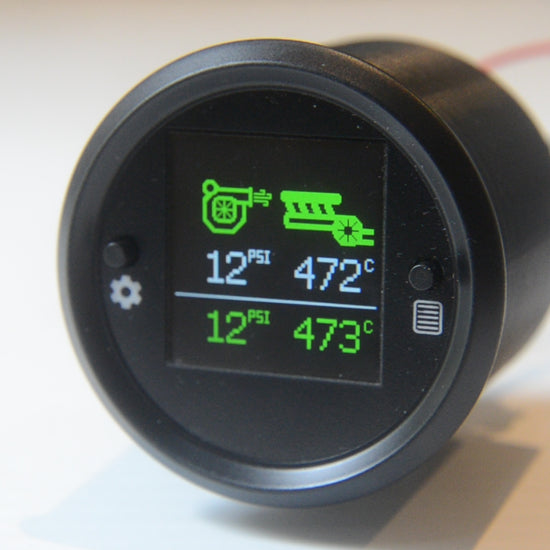

• 52mm gauge with 2 inputs  (Boost Pressure and EGT Temperature)
• Boost pressure sensor with 1 meter cable and 50cm boost pressure hose

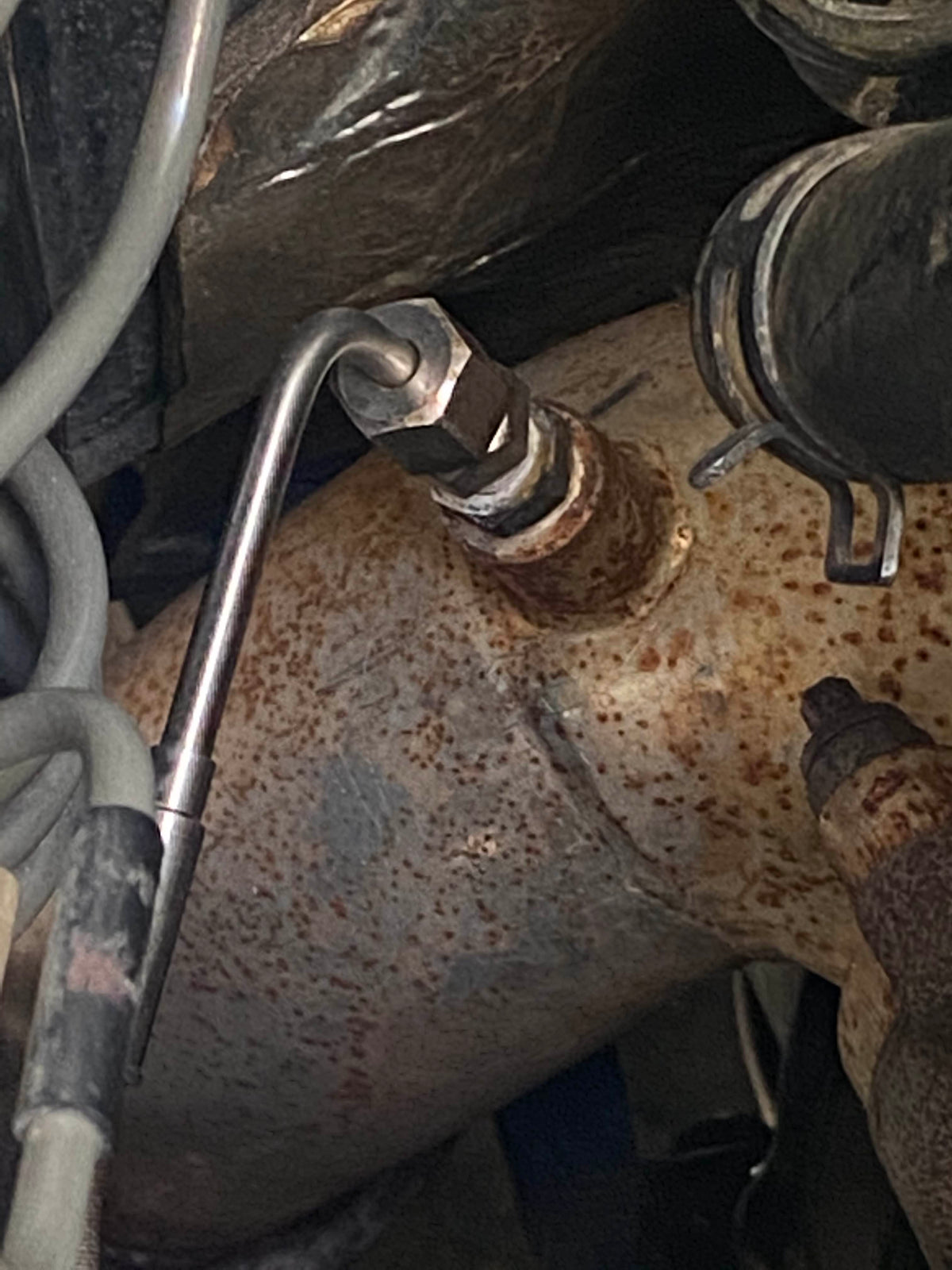

• EGT sensor 1/8”NPT thermocouple probe with 2 meter cable (including optional mild or stainless steel bung)
• Gauge to connection box firewall cable 2.5m
• mounting kit
• Celsius, Fahrenheit, PSI and KPA/10 standards are supported.
• Operations manual, summary and installation guide documentation

More information is available here

GI_VBEA_01_Manual
