Gauge External Relay Driver
Gauge External Relay Driver
Couldn't load pickup availability
|

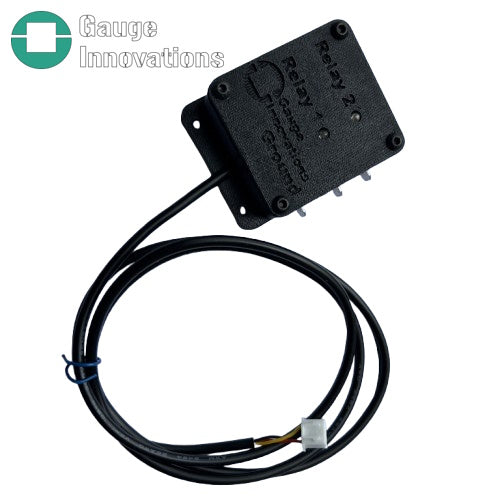

The gauge external relay driver can be used with particular GaugeInnovations.com gauge models to extend warnings and alarms to external devices such as fans, pumps, alarm lights and sirens. |
The gauge external relay driver has two relay driver outputs controlled by the gauge firmware.

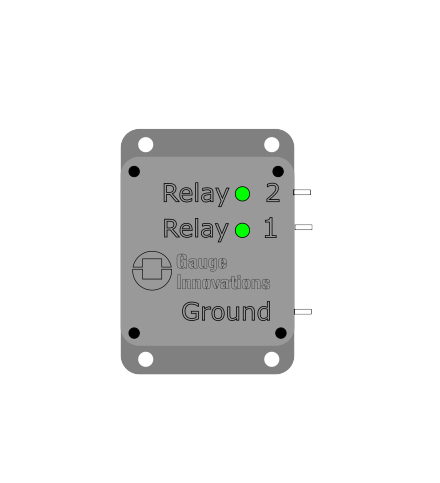

Relay Driver Enclosure (top view)

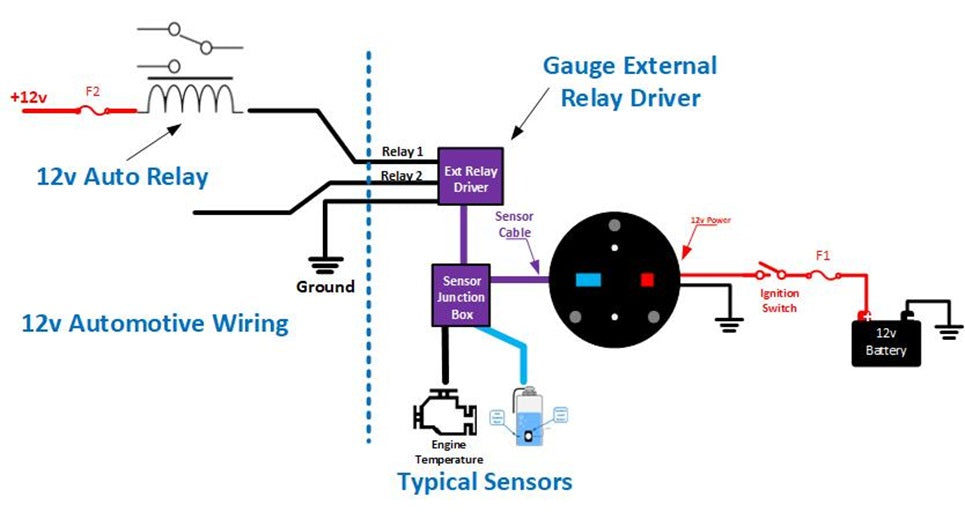

Relay 1 : Provides a current limited (200ma) solid state connection to ground if there is an AMBER warning or RED alarm on the gauge icon number 1. For example, Relay Driver 1 could be used to switch on an engine cooling fan or alarm strobe light/siren via a 12v high current relay.
Relay 2 : Provides a current limited (200ma) solid state connection to ground if there is an AMBER warning or RED alarm on the gauge icon number 2. For example, Relay Driver 2 could be used to switch on a transmission cooling fan or alarm strobe light/siren via a 12v high current relay.

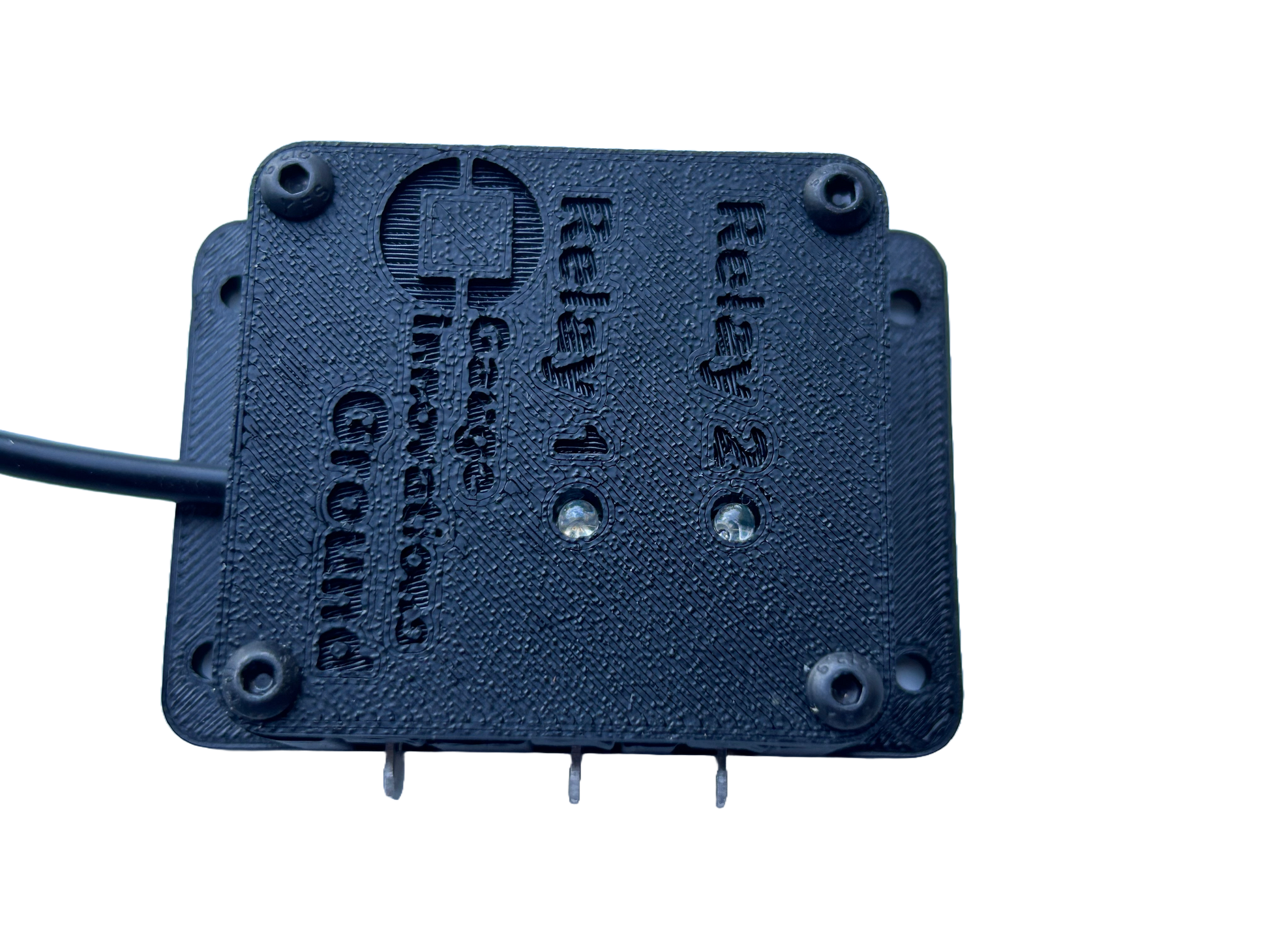

Both relay drivers are designed for 12v negative ground vehicles. A LED indicates which relay driver is operating.
The External Relay Driver will be recognised by the gauge at power up factory reset.
CONTACT US TO CHECK IF YOUR GAUGE MODEL IS SUPPORTED
